Service tanks for cleaning portable toilets
We manufacture tanks and equipment for wastewater removal for the sanitation industry, portable toilets, and other applications in the mining sector and other locations lacking sanitation facilities. Ideal for businesses that rent portable toilets or clean grease traps.

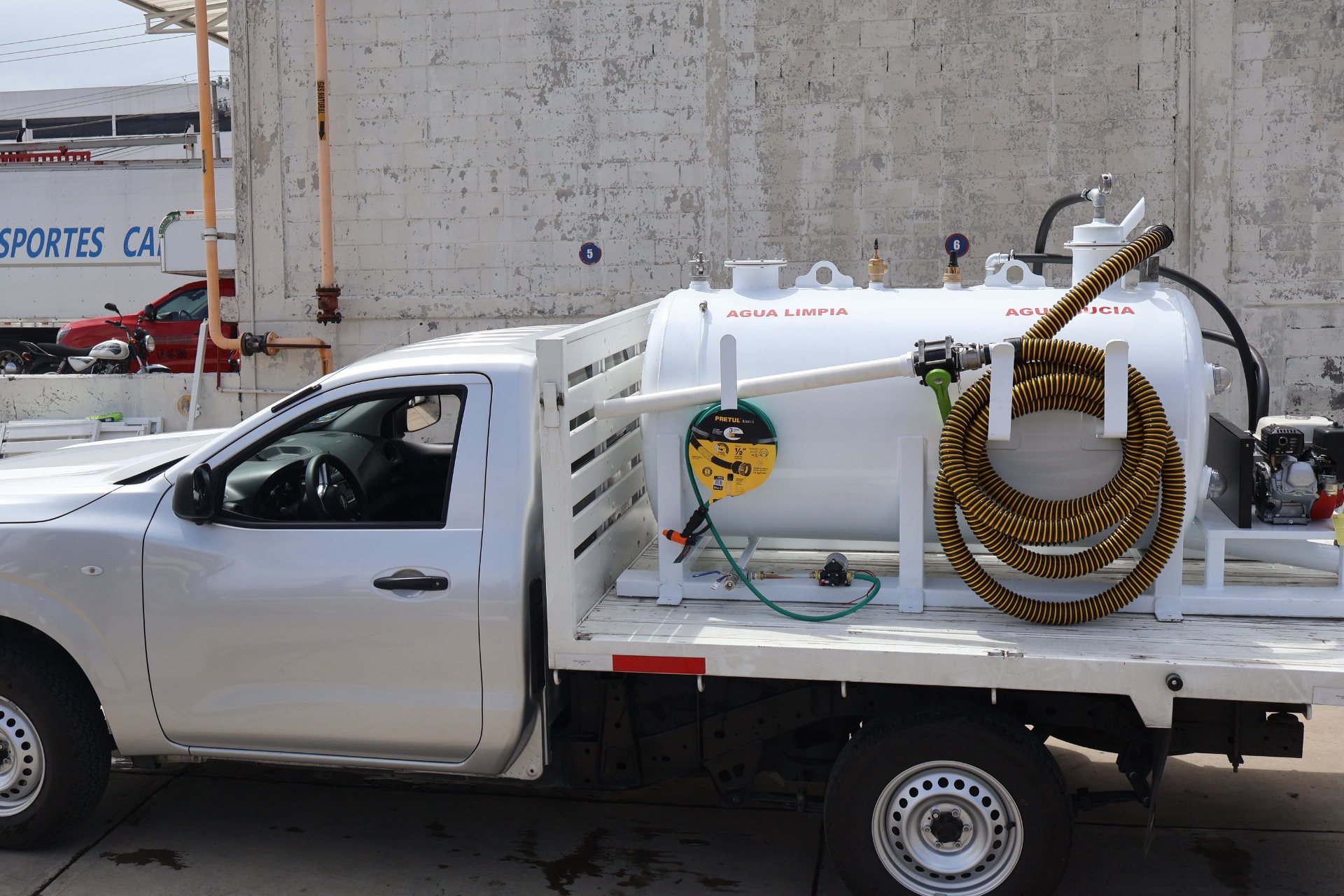

The 300-gallon vacuum system is designed to make cleaning portable toilets more efficient and faster for the operator, while also being environmentally friendly. It is divided into two sections: a 200-gallon section for wastewater and a 100-gallon section for clean water used for cleaning.
The waste service tank has a quick-opening access cover and, optionally, a side ladder for larger tanks to access the top flange or hatch for easier inspection, repair, or cleaning. To monitor the level in each compartment, the wastewater compartment has two or three sight glasses to check its containment level, and the clean water compartment has a transparent tube to view the volume of water available for use.
The walkways and both cabinets are made of heavy-duty 1/8" aluminum to maintain a clean, polished appearance. Each side cabinet has a keyed lock and shelves for storing supplies in a dry area. For driver safety, a safety equipment package is recommended in accordance with Department of Transportation requirements. This package includes a flag, a spotlight, a first aid kit, and a fire extinguisher.
A 36 steel vacuum tanks.
Constructed from carbon steel according to ASME standards, the most widely used material on the market for its high strength and durability with proper maintenance, these tanks are equipped with a vacuum pump, the size of which depends on the tank's volume. They also guarantee compliance with the latest version of ASTM testing. We also offer standard capacity tanks, such as the STS SERIES model.
This tank is constructed without 1/4" carbon steel sections and is fully equipped for septic systems or grease collection from kitchens, workshops, and industrial applications. These tanks are available in a wide range of capacities.
300 gl A36 steel tank
The delivery can be just the tank or with all the accessories; we can even deliver it mounted on your unit, according to your needs.
Standard Components
- A36 carbon steel vacuum pump tank.
- Two internal baffles.
- Removable hose hangers constructed of 12" A36 carbon steel.
- Walkways constructed of 1/4" A36 carbon steel. 1-gallon secondary trap, 1/4" carbon steel. 10" low-profile primary trap, 1/4" carbon steel.
- 20" diameter x 12" high top hatch, 1/4" carbon steel, 6 wing nuts. 20" diameter x 12" high rear hatch, 1/4" carbon steel, 5 wing nuts.
- With or without rear 12" hose hangers.

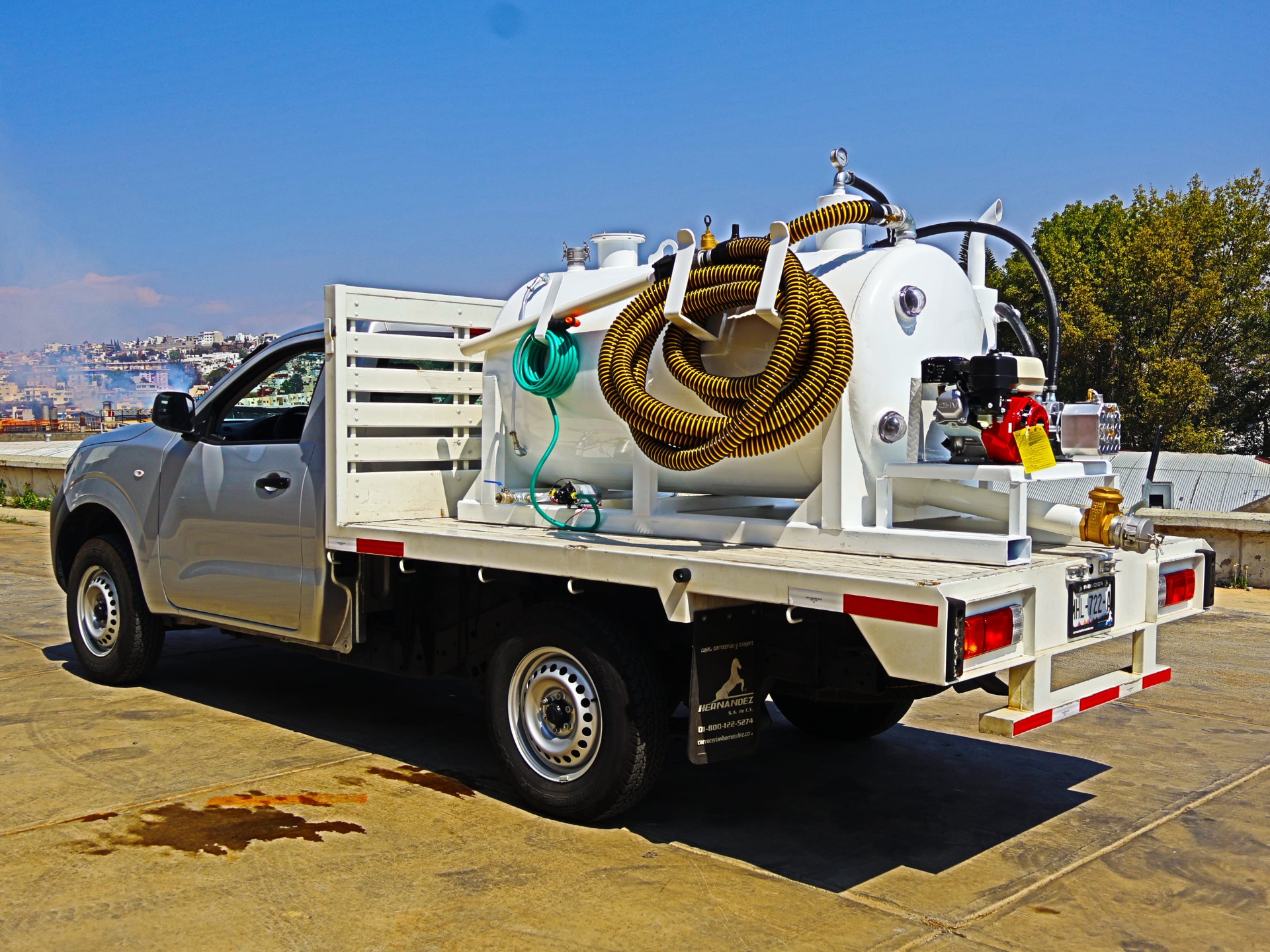

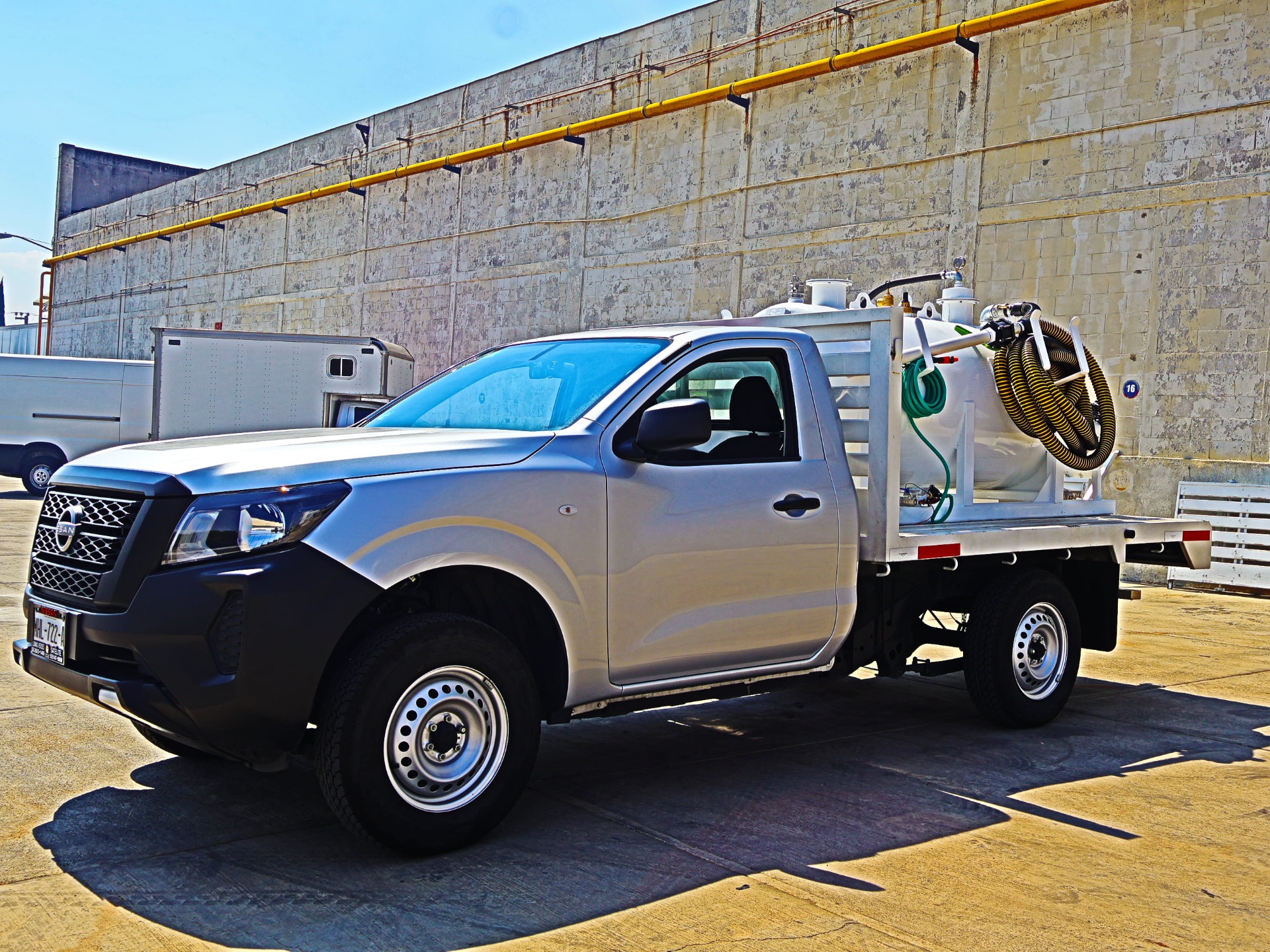

300gl tank for Nissan NP300
Tank mounted on a Nissan NP300 unit, ready to start working functions, you can bring the unit and we will mount it on a chassis or platform.
- Two 3" steel sight glasses.
- LED work light kit. 3" discharge nipple with 3" combo valve.
- Standard 35 CFM vacuum pump. 4.5" pressure gauge.
- 15" Hg vacuum relief valve. 144 CFM pressure relief valve.
- Chassis mounting kit.
- White electrostatic powder-coated finish.
- 5.5 HP gasoline engine.

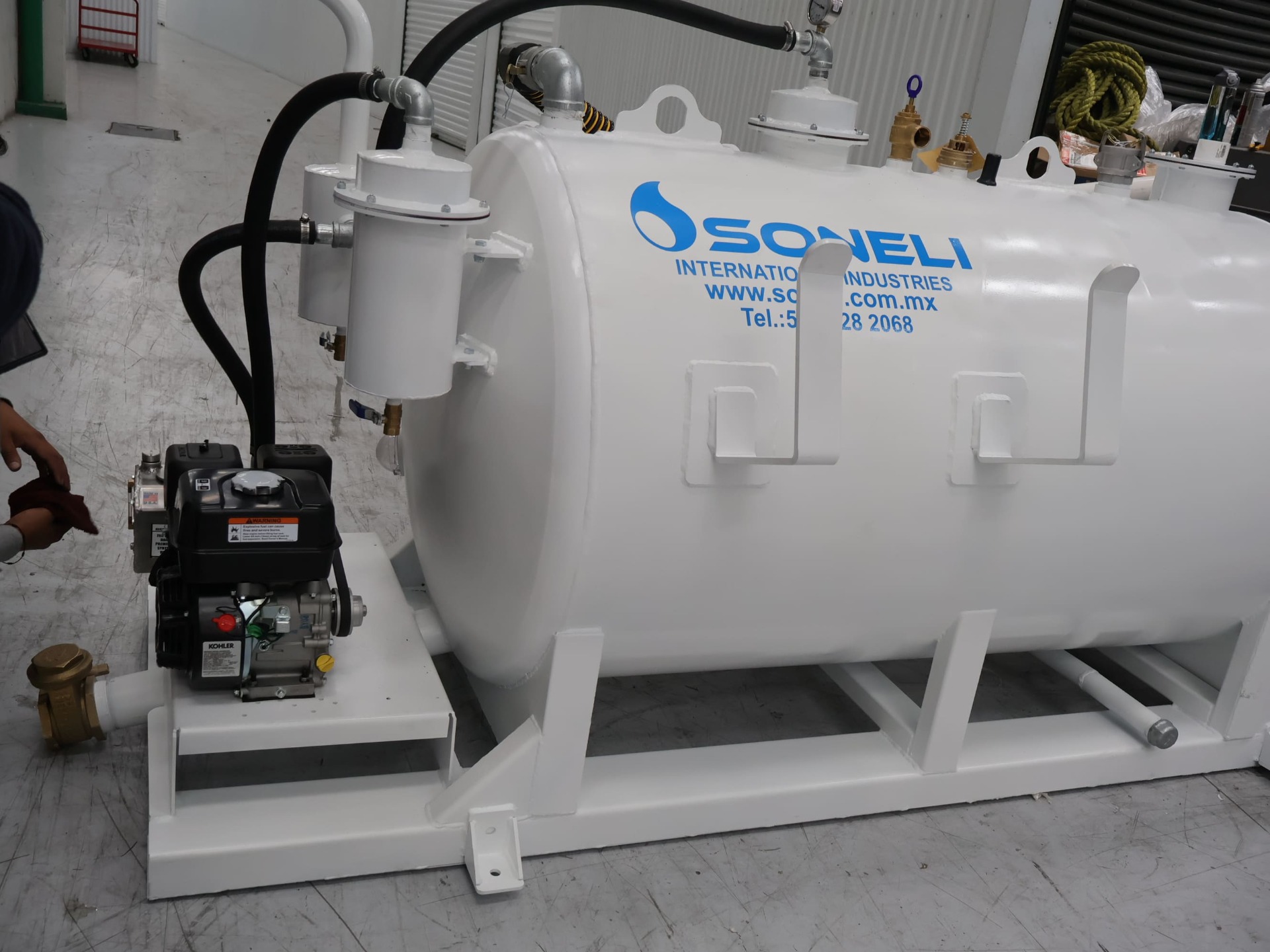

530 gal A36 steel tank
Carbon steel tank prepared with all its accessories, ready to be mounted on the vehicle.
- Two 3" steel sight glasses.
- LED work light kit. 3" discharge nipple with 3" combo valve.
- Standard 70 CFM vacuum pump. 4.5" pressure gauge.
- 15" Hg vacuum relief valve.
- 144 CFM pressure relief valve. Chassis mounting kit.
- White electrostatic powder-coated finish.
- 6.5 HP gasoline engine.
715 gal A36 steel tank
Slide-in tank to be adapted to units of 3 or more tons of load, either on a platform or directly to the chassis, can be equipped with everything necessary ready to start operations or is also offered without accessories.

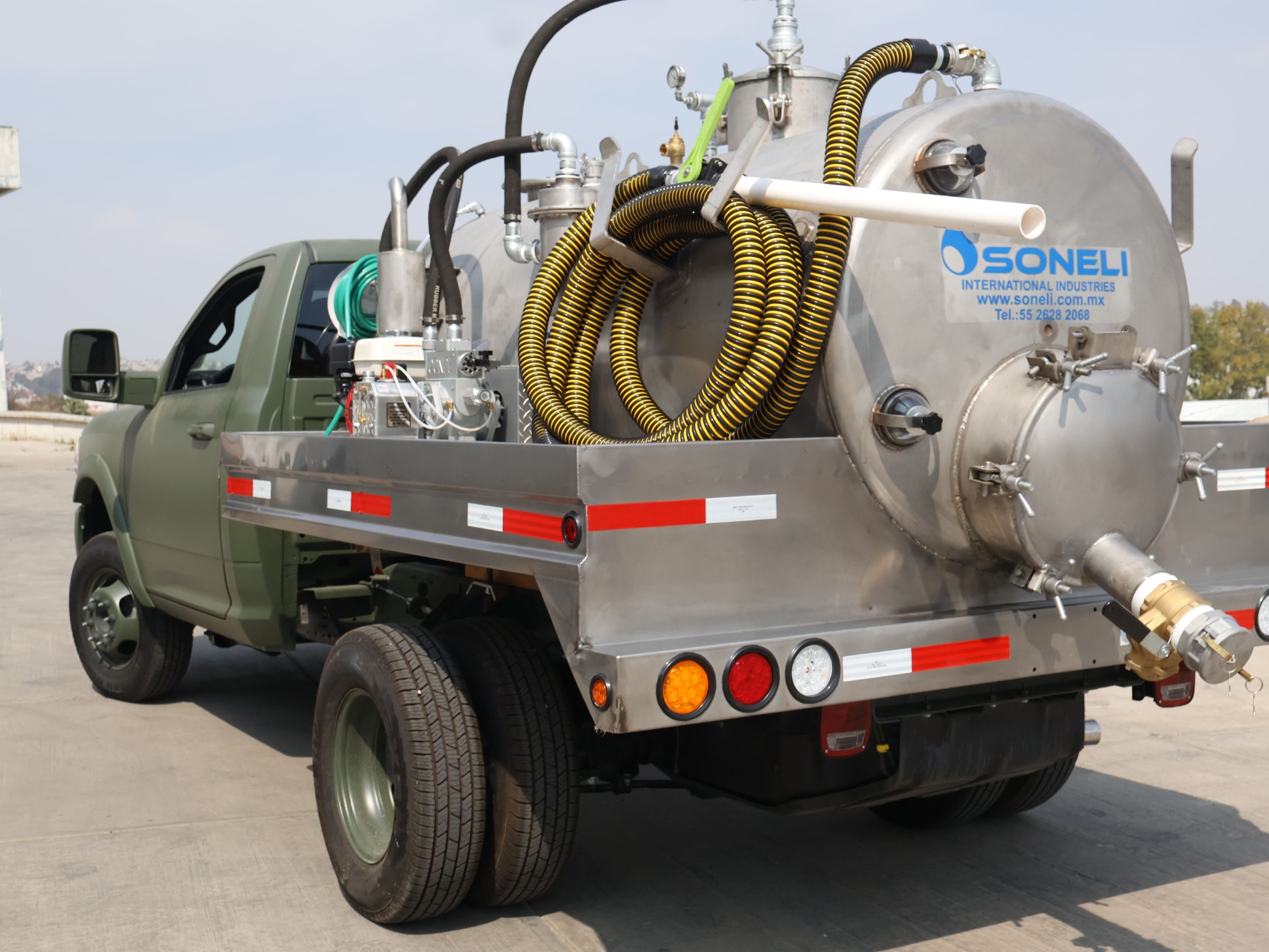

Stainless steel tanks
Why a Stainless Steel Tank?
Most operators choose the TS-715 model for their business because of its strength, corrosion resistance, low maintenance, and aesthetics. Recent improvements to the TS-715 include reinforced stainless steel (304, 316, and 416) side skirts and wider, longer hose trays. The tank has round level gauges. For safety, an internal baffle system prevents the tank contents from shifting, thus avoiding loss of vehicle control during braking or sudden turns.
Pro-VAC 60 gl Aluminum Tank
Ideal for grease traps or very confined spaces, it includes all accessories and is ready for use and transport. Its wheels and frame make it easy to move.
Features
Conde 35 CFM Vacuum Pump with 115V Electric Motor
Dimensions: 24" x 50" (L) x 45" (H) Weight = 113.4 kg (250 lbs)
Motor = 1.5 HP, 115V, 13.4
FLA Operating Vacuum = 16" Hg
Operating Pressure = 5.5 PSI
Flow Rate = 120 gallons per minute
Capacity = 52 gallons
Satin Aluminum Finish Equipped with sight glasses, primary and secondary lines
Oil catch and recovery muffler
Retractable hose straps
- Two 3" steel sight glasses.
- LED work light kit. 3"
- discharge nipple with 3" combo valve.
- Standard 115 CFM vacuum pump. 4.5" pressure gauge.
- 15" Hg vacuum relief valve. 144 CFM pressure relief valve.
- Chassis mounting kit. White electrostatic powder-coated finish.
- 9.0 HP gasoline engine.
